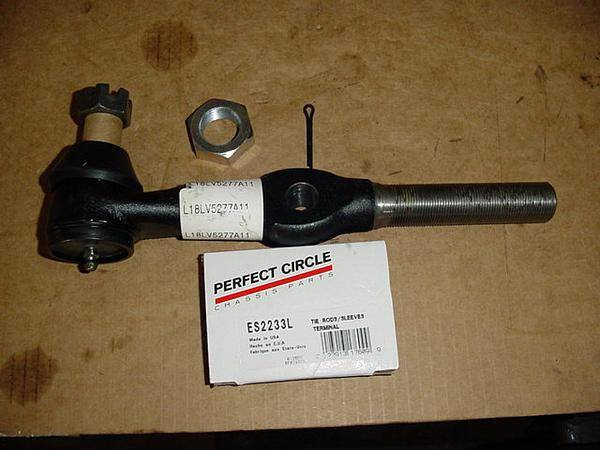

CHEVY HEAVY DUTY TIE ROD END FOR TIE ROD CONVERSION, 7/8-18 L.H. THREAD. SEE OUR TAPS AND REAMERS FOR DO IT YOURSELF CUSTOM KITS

LENGTH 9 3/4" from center of grease zerk to end of threads

THREAD LENGTH 3 1/2"

MAX. TAPER DIAMETER .772"

MIN. TAPER DIAMETER .68"

TAPER LENGTH .8"

TAPER 1.5" PER FOOT

CENTER OF DRAG LINK HOLE TO CENTER OF TIE ROD END IS 4 1/4"

THIS TIE ROD END WILL NEED TO BE REAMED TO ACCEPT EITHER TIE ROD OVER OR TIE ROD UNDER INSTALLATION. YOU CAN PURCHASE THE 85020 REAMER AND DO IT YOURSELF OR HAVE US REAM THE HOLE FOR $7 (HOLES WILL BE REAMED TO ACCEPT THE ES2027L DRAG LINK END UNLESS OTHERWISE SPECIFIED).
