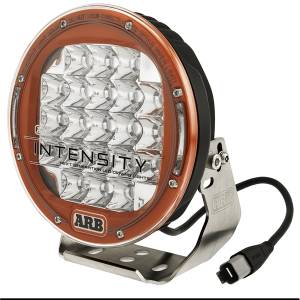

ARB AR21F 7" Intensity LED Light Flood Beam - Single

AR21F
ARB Intensity LED Flood Beam Driving Lights 7". Single light. Made in the USA.
Please Call for Availability
563.583.5363

Description

In 2009 ARB engineers started a development program to produce an ARB driving light with a completely new design incorporating the latest LED technologies.

Unlike light bars that were growing in popularity, ARB required a light that was compatible with current bull bar designs and traditional driving light mounting points. They also needed to be a legal fitment which, in many states, light bars are not.

Many ARB customers prefer a combination of a spot and a spread driving light due to the various driving conditions encountered in general off-roading. Most LED light bars on the market are considered great lights for slower off-road driving where the ability to see great distances is not so critical. For ARB's new light to compete with the best the market can offer in Halogen and HID lighting, it needed to give not only the broad flood beam associated with light bars but also a spot beam with the ability to penetrate longer distances.

Features

  • Submersible up to 9.5 ft.
  • High pressure cast A360 aluminium body.
  • Unbreakable polycarbonate lens.
  • UV stable moulded polycarbonate lens cover.
  • Multiple position stainless steel mount.
  • Durable UV Stable polyester powdercoat
  • Gore breather.
  • IP68 Certified.
  • Deutsch DT-06 waterproof connectors.
  • MIL810-STDG vibration certified
  • RoHS compliant.
  • 10-36 V DC input.
  • 74 Watts.
  • Amp draw 6.1A @ 14.4V.
  • 21 LEDs.
  • 6950 Raw Lumens.
  • Color temperature: 6500 Kelvin
  • Lux @ 10m (33Ft) – 2552 (spot) 584 (flood).
  • 20° full width flood.
  • 10° full width spot.
  • Over/under voltage protection.
  • 50,000+ Hour LED life span.
  • Zero UV emissions .
  • Operating temp: -40°F to +145°F
  • Protected against RFI/EMC interference.
  • Integrated thermal management.
  • Weight 2.5Kg / 5.5Lb complete.
  • Made in the USA

Fitting Notes

Existing wire harness or optional ARB harness part number 3500520 required for installation.

Details

  • AR21F
  • AR21F
  • ARB
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
