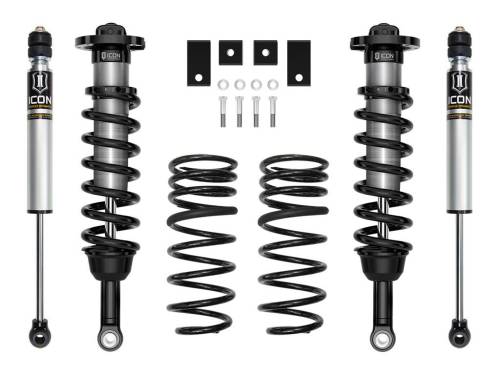

ICON Vehicle Dynamics 23-24 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM - K53233

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2023-2024 Toyota Sequoia is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.This Stage 3 system features the 2023-2024 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear.Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Vehicle specific design for 2023-2024 Toyota Sequoia2.5 Series front coilovers with internal reservoirs for superior damping and vehicle controlAdjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAsIncluded sway bar drop brackets reduce bind in OE sway bar linksAllows for full wheel travel without overstressing OE componentsAllows for up to 40% increase in front wheel travel over stock without overstressing OE componentsDual rate rear coil springs improve performance and ride quality while providing 2" of rear lift2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performanceAll ICON shock absorbers are fully rebuildable and re-tunable

Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 55156 - 22-24 TUNDRA/23-24 SEQUOIA DIFF DROP KIT
Add-On Part: 58461DJ - 22-24 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
Add-On Part: 58561DJ - 22-24 TUNDRA/23-24 SEQUOIA BILLET UCA DJ PRO KIT
Add-On Part: 55164 - 22-24 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3.75
Maximum Lift Rear: 3
Minimum Lift Front: 3
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Internal
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
OEM Wheels & Tires Fitment: Yes;Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset;Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset;Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required);APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.;APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.;APPLICATION NOTE #142: Not Compatible With Tundra/Sequoia Equipped With Load-Leveling Rear Height Control Air Suspension.;APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4WD Models;APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.;APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required;TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear.

ICON 23-24 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM
