ARB Air Compressor - CKMTP12

ARB's new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.

Designed for inflating tires and Air Locker activation when used in conjunction with optional accessories
Development - To ensure we meet your expectations ARB invests heavily in research and development. Our design and engineering team utilizes the latest CAD CAM parametric modeling systems and finite element analysis packages and is supported by subcontract companies and universities for special projects like vibration strength and crash testing. With an air bag equipped vehicle for example it is essential that the vehicle s crush rate and air bag triggering is not altered when a bull bar is installed. Our exhaustive testing programs ensure ARB bull bars meet these requirements. We also devote considerable time and resources toward to sourcing new products from around the world. IPF lights from Japan Warn winches from the US we scan the globe in search of equipment that meets both the demands of our customers and our own stringent quality requirements. What s more we re also constantly on the lookout for new ways to improve our business practices from distribution to customer service. ARB is a Quality Endorsed Company and wherever we can we endeavor to raise the bar .
Over-pressure safety valve equipped
On-board model available in either a 12V or 24V configuration
Suitable for many air tools when used in conjunction with a 1 gallon air tank (optional with on-board models)
100% duty cycle
Sealed for moisture and dust resistance
Hard anodized cylinder bores for reduced friction
Teflon impregnated carbon fiber piston seals for maximum trouble-free life

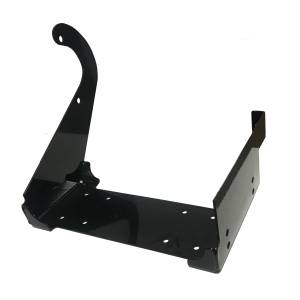

Anodized mounting bracket dissipates heat
Integrated pressure switch relays and IP55 (waterproof/dustproof) brushless fan cools electronics motors and cylinder heads

Add-On: N/A
Air Flow 0PSI: 6.16CFM
Air Flow 29PSI: 4.68CFM
Duty Cycle: 100% 60/0
Height: 7.3 inch
IP Rating: IP55
Length: 18.8 inch
Max Amps: 68.6
Max PSI: 150
Prop 65 Yes/No: No
Volts: 12V
Weight: 33 lb
Width: 14 inch
