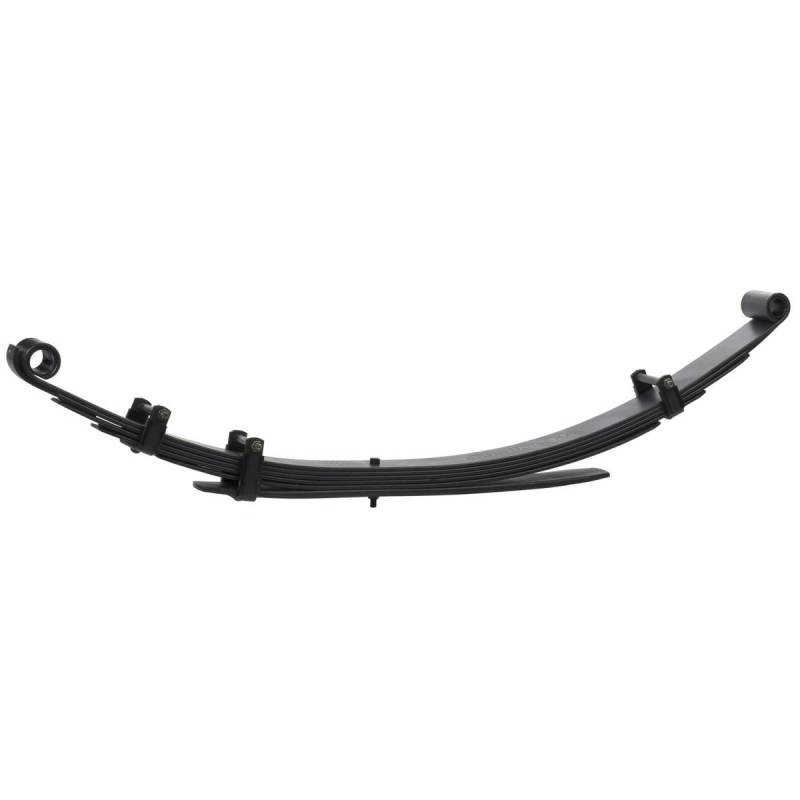

Old Man Emu Rear Leaf Spring - CS022R

Part of ARB's integrated 4X4 suspension systems Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications allowing you to set your vehicle up for recreational or commercial purposes. Feature packed a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride handling and load carrying capability.

Draw-tapered and diamond cut leaves
Development - To ensure we meet your expectations ARB invests heavily in research and development. Our design and engineering team utilizes the latest CAD CAM parametric modeling systems and finite element analysis packages and is supported by subcontract companies and universities for special projects like vibration strength and crash testing. With an air bag equipped vehicle for example it is essential that the vehicle s crush rate and air bag triggering is not altered when a bull bar is installed. Our exhaustive testing programs ensure ARB bull bars meet these requirements. We also devote considerable time and resources toward to sourcing new products from around the world. IPF lights from Japan Warn winches from the US we scan the globe in search of equipment that meets both the demands of our customers and our own stringent quality requirements. What s more we re also constantly on the lookout for new ways to improve our business practices from distribution to customer service. ARB is a Quality Endorsed Company and wherever we can we endeavor to raise the bar .
Bolted leaf clamps allow installation of anti-squeak nylon liners
Fully scragged to reduce the risk of sagging
Load tested to ensure the spring meets the required specification
Military wrap design provides added safety
Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
Flat axle seat area allows a positive safe axle mount and reduces spring stress
Shot peened to reduce spring stress and increase spring life
Two-stage leaf pack featured on most rear springs for optimum comfort

Add-On: N/A
Color: Black
Eye Diameter: 31.5 mm (F) / 27.5 mm (R)
Material: Steel
Number of Leaves: 5 + 1
Primary Free Camber: 195 mm
Prop 65 Yes/No: No
Spring Rate: 194 / 388 lbf/in
Stack Height: 41 mm
Weight: 22 kg
